fix: binary vector matching raises Loki's error text at Loki's step

[szibis]

Summary

Join fixes for semantics/binary-ignoring-matching. The row stays open: its symptom, sum by (cluster) (A + ignoring(machine) B) answering about 150× Loki, is the aggregation-over-binary bug that #741 fixes. A top-level A + ignoring(machine) B already matched Loki.

This PR makes the join itself match Loki 3.7.7 (pkg/logql/evaluator.go:945-1128):

• Error text. The duplicate-series error is now byte-exact: found duplicate series on the right hand-side;many-to-many matching not allowed: matching labels must be unique on one side. There is no space after ;, and the message says "left" for group_right (evaluator.go:974-975). The proxy wrote ; many-to-many.
• Error order. Matching errors are now raised at the first failing step, in step order: right-hand duplicates, then left-hand multiple matches, within that step. The proxy checked every step for duplicates before the group-label check. The work moved to firstVectorMatchFailure and vectorMatchCounts.

No VictoriaLogs query changes. The join runs on the already-aggregated operand series.

Tests

• TestBinaryMatchingErrorTextAndStepOrder and TestBinaryIgnoringMatchingEdgeTable (13 cases: label absent, empty or one-sided; comparison filter and bool; on; group_left include).
• TestBinaryIgnoringThroughHandler, range and instant.
• TestBinaryMatchingDifferential: 6,000 generated cases against a reference ported from vectorBinop, matchingSignature, resultMetric and MergeBinOp.
• e2e vs Loki:
  • TestCompat_BinaryIgnoringAbsentLabel covers the join.
  • TestCompat_BinaryIgnoringOuterSum covers the row's shape and passes once fix: an aggregation over a binary expression aggregates the whole binary, like Loki #741 merges.

Pending before ready

• e2e against Loki on VictoriaLogs v1.52.0, after fix: an aggregation over a binary expression aggregates the whole binary, like Loki #741, so that the row can be marked fixed.
• benchstat. No timing change is expected, since this only adds post-fetch checks.
• Register the new gap draft: x / 0 gives ±Inf where Loki's MergeBinOp gives NaN.

[github-actions]

⚪ Performance A/B: no change beyond noise

17 shape×range — 17 ⚪ same · results vs Loki: 14 same, 0 new difference(s), 3 pre-existing

Every shape is within noise of the base build (±30% and 100 ms).

17 unchanged shape×range (within noise)

	shape	range	base p50	PR p50	change	Loki p50	PR ÷ Loki	result vs Loki
⚪	drilldown service landing	1h	34 ms	34 ms	⚪ +0%	26 ms	1.31×	✅ same
⚪	instant ungrouped rate	instant	9 ms	9 ms	⚪ +0%	80 ms	0.11×	✅ same
⚪	json rate by level (no filter, no drop)	1h	400	400	⚪ +0%	400	—	✅ same
⚪	json volume no filters	1h	249 ms	240 ms	⚪ -4%	51 ms	4.71×	✅ same
⚪	logs plain	1h	73 ms	80 ms	⚪ +10%	631 ms	0.13×	✅ same
⚪	logs | json	1h	104 ms	103 ms	⚪ -1%	60 ms	1.72×	✅ same
⚪	stream-label count by app	1h	28 ms	31 ms	⚪ +11%	43 ms	0.72×	✅ same
⚪	topk rate by app	1h	46 ms	52 ms	⚪ +13%	94 ms	0.55×	➖ differs (as base)
⚪	U1 logfmt amount rate	1h	39 ms	40 ms	⚪ +3%	13 ms	3.08×	✅ same
⚪	U2 json duration_ms rate	1h	99 ms	92 ms	⚪ -7%	26 ms	3.54×	✅ same
⚪	U3 json duration_ms rate, error filter	1h	91 ms	91 ms	⚪ +0%	29 ms	3.14×	✅ same
⚪	U4 logfmt latency_ms rate, production	1h	373 ms	372 ms	⚪ -0%	125 ms	2.98×	➖ differs (as base)
⚪	U5 logfmt amount rate, instant	instant	9 ms	7 ms	⚪ -22%	14 ms	0.50×	✅ same
⚪	U6 json duration_ms rate, instant	instant	12 ms	17 ms	⚪ +42%	24 ms	0.71×	✅ same
⚪	U7 json duration_ms sum_over_time, instant	instant	18 ms	16 ms	⚪ -11%	24 ms	0.67×	✅ same
⚪	U8 logfmt amount rate by service (grouped)	1h	42 ms	44 ms	⚪ +5%	13 ms	3.38×	✅ same
⚪	U9 logfmt amount rate_counter (folded per series)	1h	236 ms	238 ms	⚪ +1%	35 ms	6.80×	➖ differs (as base)

Cold (first-run) timings — what a user opening a panel sees

shape	range	base cold	PR cold	Loki cold	PR ÷ Loki cold
drilldown service landing	1h	37 ms	34 ms	578 ms	0.06×
instant ungrouped rate	instant	10 ms	8 ms	83 ms	0.10×
json rate by level (no filter, no drop)	1h	400	400	400	—
json volume no filters	1h	241 ms	222 ms	760 ms	0.29×
logs plain	1h	214 ms	141 ms	1.24 s	0.11×
logs | json	1h	173 ms	176 ms	1.76 s	0.10×
stream-label count by app	1h	31 ms	25 ms	577 ms	0.04×
topk rate by app	1h	51 ms	47 ms	693 ms	0.07×
U1 logfmt amount rate	1h	57 ms	43 ms	58 ms	0.74×
U2 json duration_ms rate	1h	92 ms	98 ms	144 ms	0.68×
U3 json duration_ms rate, error filter	1h	90 ms	95 ms	168 ms	0.57×
U4 logfmt latency_ms rate, production	1h	376 ms	371 ms	1.10 s	0.34×
U5 logfmt amount rate, instant	instant	10 ms	7 ms	13 ms	0.54×
U6 json duration_ms rate, instant	instant	13 ms	16 ms	24 ms	0.67×
U7 json duration_ms sum_over_time, instant	instant	14 ms	19 ms	24 ms	0.79×
U8 logfmt amount rate by service (grouped)	1h	62 ms	43 ms	64 ms	0.67×
U9 logfmt amount rate_counter (folded per series)	1h	238 ms	233 ms	565 ms	0.41×

Why these shapes

• internal/proxy/vector_matching.go → 10: control/stream-label count by app, unwrap-ungrouped-sum/U1 logfmt amount rate, unwrap-ungrouped-sum/U2 json duration_ms rate, unwrap-ungrouped-sum/U3 json duration_ms rate, error filter, unwrap-ungrouped-sum/U4 logfmt latency_ms rate, production, unwrap-ungrouped-sum/U5 logfmt amount rate, instant, unwrap-ungrouped-sum/U6 json duration_ms rate, instant, unwrap-ungrouped-sum/U7 json duration_ms sum_over_time, instant …
• control smoke → 8: control/drilldown service landing, control/instant ungrouped rate, control/json rate by level (no filter, no drop), control/json volume no filters, control/logs plain, control/logs | json, control/stream-label count by app, control/topk rate by app

_{base b20a550f6f → PR d84081b246 · 4 runs (first is cold), warm p50 · ranges 1h · noise ±30% and 100 ms · VictoriaLogs restarts 0→0 · 3.0 min. Same runner, one fresh stack, targets interleaved per request. How to read and reproduce: bench/ab/README.md.}

[github-actions]

✅ Visual smoke: passed

Base b20a550f6f vs PR 6c2ff79774, Grafana through the proxy builds and Loki on one fresh stack; run.
Core set: 5 capture(s) at 1h. Detailed set: 2 entries (explore-metric-plain, explore-unwrap-rate-sum). 10 capture(s), 15m/1h/6h, 24h and 7d stay out of PR runs.

page	range	set	base = PR (data)	vs Loki (PR)	pixel diff	result
dd-fields	1h	core	✅ identical	identical (4 explained, 1 history-dependent)	0.11%	✅
dd-landing	1h	core	✅ identical	identical (3 explained)	0.13%	✅
dd-service-logs	1h	core	✅ identical	identical (3 explained, 1 history-dependent)	0.11%	✅
explore-logs-plain	1h	core	✅ identical	identical (1 explained)	0.07%	✅
explore-metric-plain	1h	core	✅ identical	identical (1 explained)	0.04%	✅
explore-metric-plain	15m	detailed	✅ identical	identical (1 explained)	0.04%	✅
explore-metric-plain	6h	detailed	✅ identical	n/a (beyond the Loki window)	0.04%	✅
explore-unwrap-rate-sum	15m	detailed	✅ identical	identical (1 explained)	0.04%	✅
explore-unwrap-rate-sum	1h	detailed	✅ identical	identical (1 explained)	0.04%	✅
explore-unwrap-rate-sum	6h	detailed	✅ identical	n/a (beyond the Loki window)	0.04%	✅

Gate: a base-vs-PR data difference passes when the PR is closer to Loki, and fails when the PR diverges from Loki or Loki cannot decide it (at a range Loki does not hold, a difference passes when the same page proved it closer to Loki at a shorter range; otherwise label the pull request visual-change-expected to accept an intended change). Also failing: a panel empty on the PR but not on the base, an error banner, panel error, error answer or new "No data" panel on the PR, a PR side that never settled, a difference that did not reproduce on the recapture. Pixel differences only warn.

Core set montages (5): base | PR | Loki

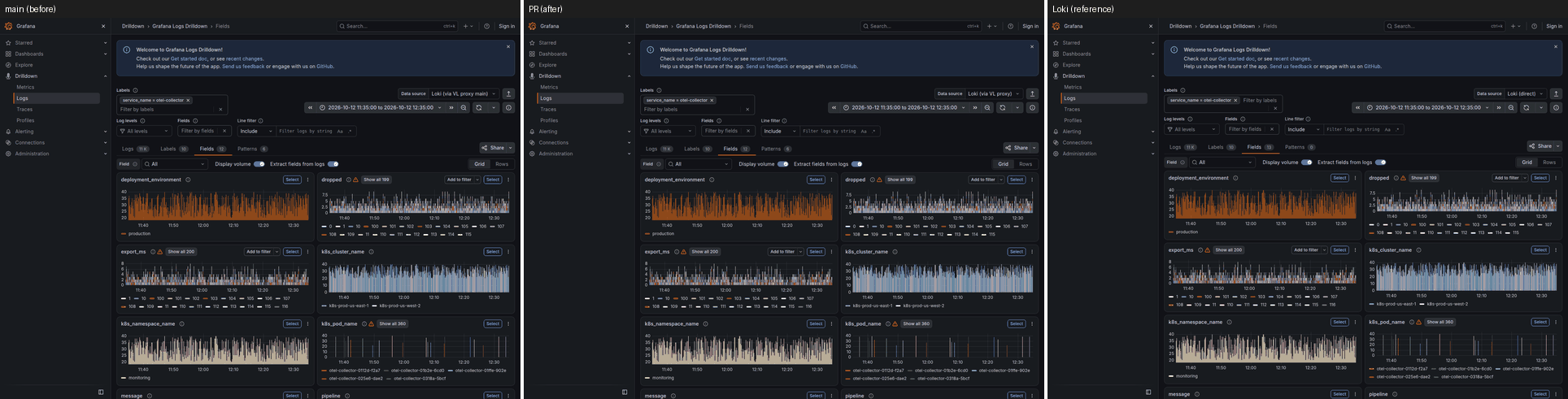

dd-fields-1h

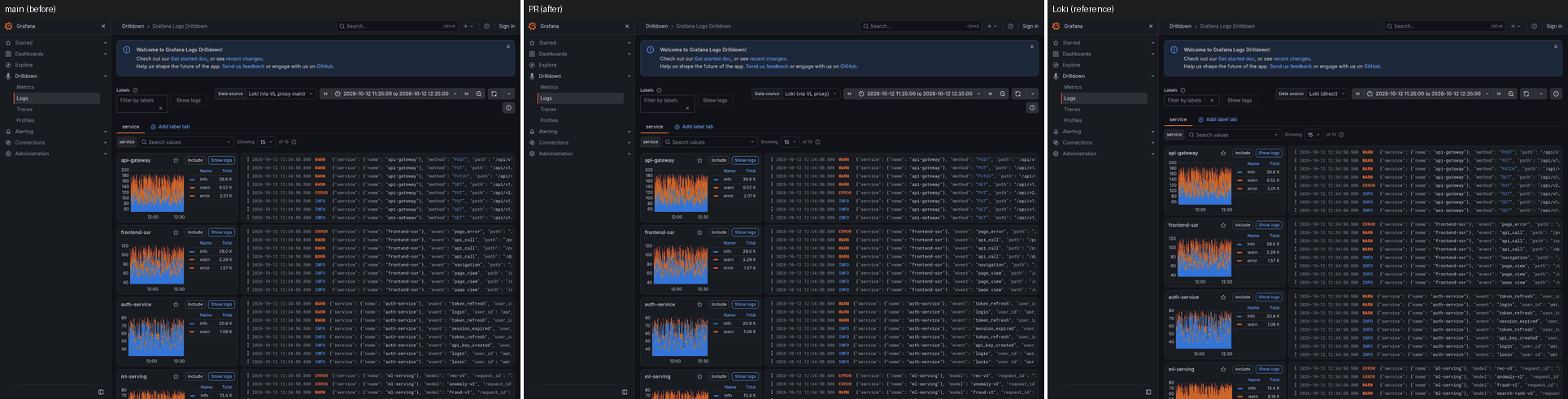

dd-landing-1h

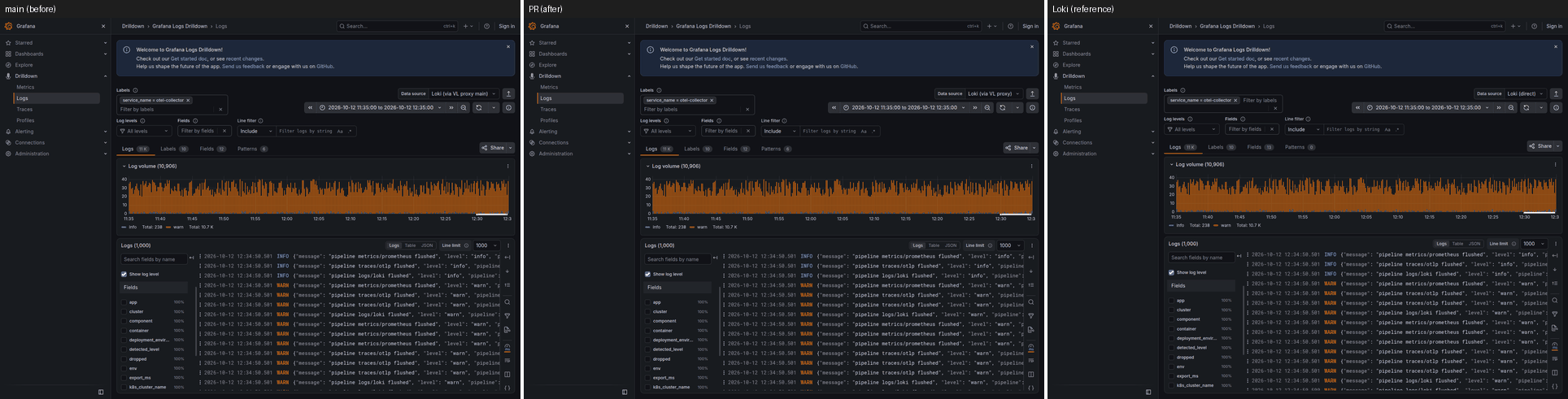

dd-service-logs-1h

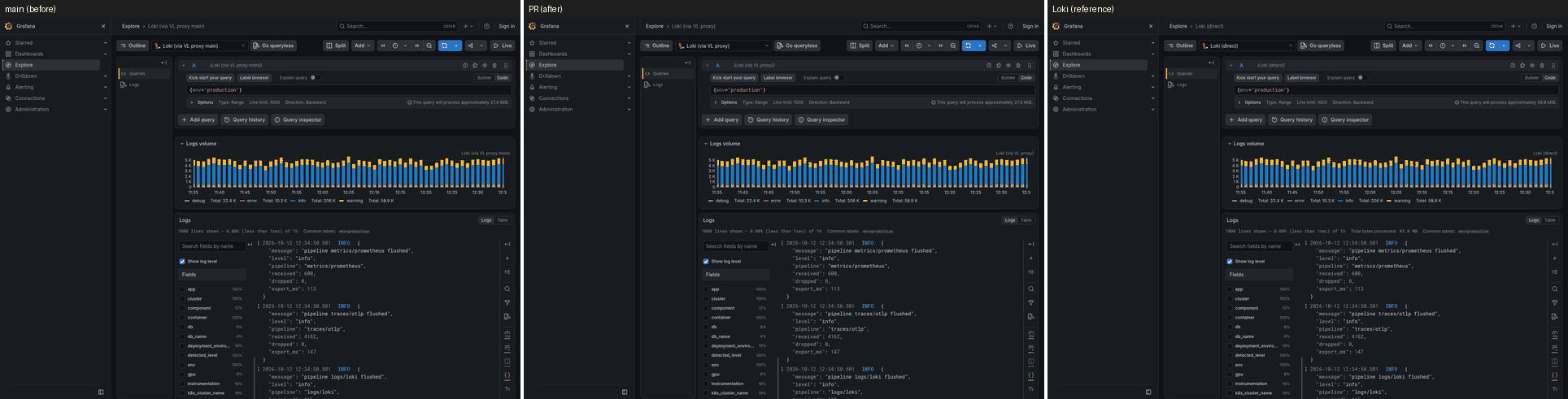

explore-logs-plain-1h

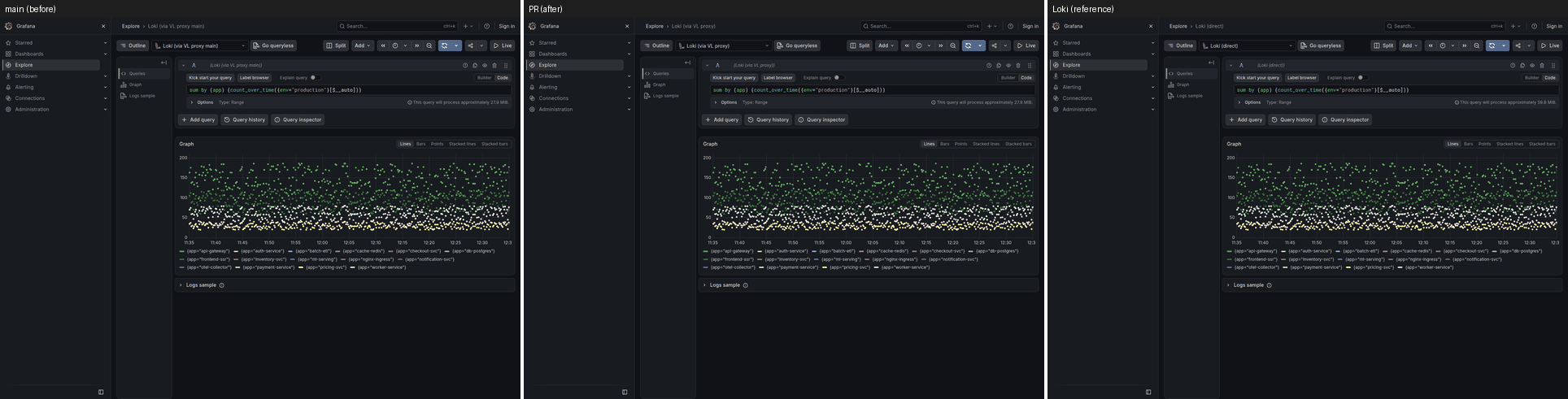

explore-metric-plain-1h

All montages of this run: pr-visuals/pr-742.

[github-actions]

PR Quality Report

Compared against base branch main.

Coverage and tests

Signal	Base	PR	Delta
Test count	8648	8678	30
Coverage	87.7%	87.7%	0.0% (stable)

Compatibility

Track	Base	PR	Delta
Loki API	100.0%	11/11 (100.0%)	0.0% (stable)
Logs Drilldown	100.0%	17/17 (100.0%)	0.0% (stable)
VictoriaLogs	100.0%	11/11 (100.0%)	0.0% (stable)

Performance smoke

Lower CPU cost (ns/op) is better. Lower benchmark memory cost (B/op, allocs/op) is better. Higher throughput is better. Lower load-test memory growth is better. Benchmark rows are medians from repeated samples.

Signal	Base	PR	Delta
QueryRange cache-hit CPU cost	3384.0 ns/op	3414.0 ns/op	+0.9% (stable)
QueryRange cache-hit memory	1240.0 B/op	1240.0 B/op	0.0% (stable)
QueryRange cache-hit allocations	27.0 allocs/op	27.0 allocs/op	0.0% (stable)
QueryRange cache-bypass CPU cost	4064.0 ns/op	4052.0 ns/op	-0.3% (stable)
QueryRange cache-bypass memory	1300.0 B/op	1302.0 B/op	+0.2% (stable)
QueryRange cache-bypass allocations	27.0 allocs/op	27.0 allocs/op	0.0% (stable)
Labels cache-hit CPU cost	904.7 ns/op	902.5 ns/op	-0.2% (stable)
Labels cache-hit memory	48.0 B/op	48.0 B/op	0.0% (stable)
Labels cache-hit allocations	3.0 allocs/op	3.0 allocs/op	0.0% (stable)
Labels cache-bypass CPU cost	1490.0 ns/op	1479.0 ns/op	-0.7% (stable)
Labels cache-bypass memory	399.0 B/op	399.0 B/op	0.0% (stable)
Labels cache-bypass allocations	14.0 allocs/op	14.0 allocs/op	0.0% (stable)

State

• Coverage, compatibility, and sampled performance are reported here from the same PR workflow.
• This is a delta report, not a release gate by itself. Required checks still decide merge safety.
• Performance is a smoke comparison, not a full benchmark lab run.
• Delta states use the same noise guards as the quality gate (percent + absolute + low-baseline checks), so report labels match merge-gate behavior.
