Tidy the design system, docs, and dependencies for forkers - #6

Merged
pei-tinybird merged 4 commits into
mainfrom
feature/project-cleanup
Oct 14, 2026
Merged

pei-tinybird merged 4 commits into
mainfrom
feature/project-cleanup

Conversation

@pei-tinybird

@pei-tinybird pei-tinybird commented Oct 13, 2026 •

Copy link
Copy Markdown
Collaborator

Summary

Make the project easier to fork, simpler, and better documented. Also fixes a dashboard crash, hardens the console routes, and updates outdated dependencies.

Changes

Fixes

  • /?range=toString returned a 500. lib/range.ts now uses Object.hasOwn, and a test covers it.
  • /api/console/server-event and /api/console/stored reject bodies over 64 KB (413). stored now accepts same-origin requests only.
  • Server SDK: pageUrl is sanitized like the browser client (no credentials, no hash, only allowed query params), with a new allowedQueryParams option. Relative URLs still throw.

Dependencies

  • Updated @base-ui/react 1.9.0, @tabler/icons-react 3.49.0, @vercel/connect 2.4.1, tailwind-merge 3.7.0, @types/node 24.19.2 (kept on 24 to match engines).
  • Removed unused playwright-core and class-variance-authority.

Design system

  • One Button (components/button.tsx, no cva), plus shared cardClass, inputClass, focusRing, Notice, and ExternalLink in components/ui.tsx.
  • Arbitrary values went from 41 to 1 (the sidebar height).
  • Tokens: repeated literals aliased, one green, badge colors registered as utilities, unused tokens removed.
  • Contrast: badge text is now at least 4.6:1 (was as low as 2.5:1). Chart series that share these colors are slightly darker.
  • Recordings and console share the @4xl two-column breakpoint. The recordings list is 24rem wide.
  • Accessibility: calendar arrow keys work (the day ref is now attached), and event viewer rows are keyboard buttons.
  • Removed dead animation classes, dark: classes, unused props, and the provenance comments.

One component per file

  • components/ui/: generic primitives (button, badge, tooltip, notice, popover, calendar) and shared class strings in styles.ts.
  • components/dashboard/: cards, grid, bar list, charts, data table, date filter.
  • components/console/: one file per console card. console-store.ts is unchanged.
  • app/(dashboard)/_sections/: one file per dashboard section. page.tsx goes from 584 to 133 lines and console-app.tsx from 679 to 66.
  • Removed SegmentedLinks, props no caller passes, and exports nobody imports. Compiled CSS is byte-identical and screenshots match before and after the split.

Forkability

  • Branding lives in lib/site.ts (name, tagline, links).
  • Engagement labels are built from ENGAGED_MS and QUICK_EXIT_MS, so they match the SQL.

Docs

  • README: screenshot up top, corrected sign-in mode and required variables, a "Customize it" section (branding plus 6 steps to add a widget), and a troubleshooting table with the collector's error codes.
  • SDK README: all options documented, one schema reference for events and recordings.
  • CONTRIBUTING holds the rules. AGENTS.md links to it. .env.example matches the README.

Test plan

  • npm run typecheck, npm test (97 tests), and npm run build pass
  • Verified locally with npm run dev: dashboard, console, and recordings at 1440 and 1280px, the console at 600px, both sign-in tabs, date picker keyboard navigation
  • Dashboard queries unchanged apart from the shared engagement constants
  • Workspace picker after Vercel Connect (needs the OAuth flow)
  • Phone widths below 600px

Screenshots

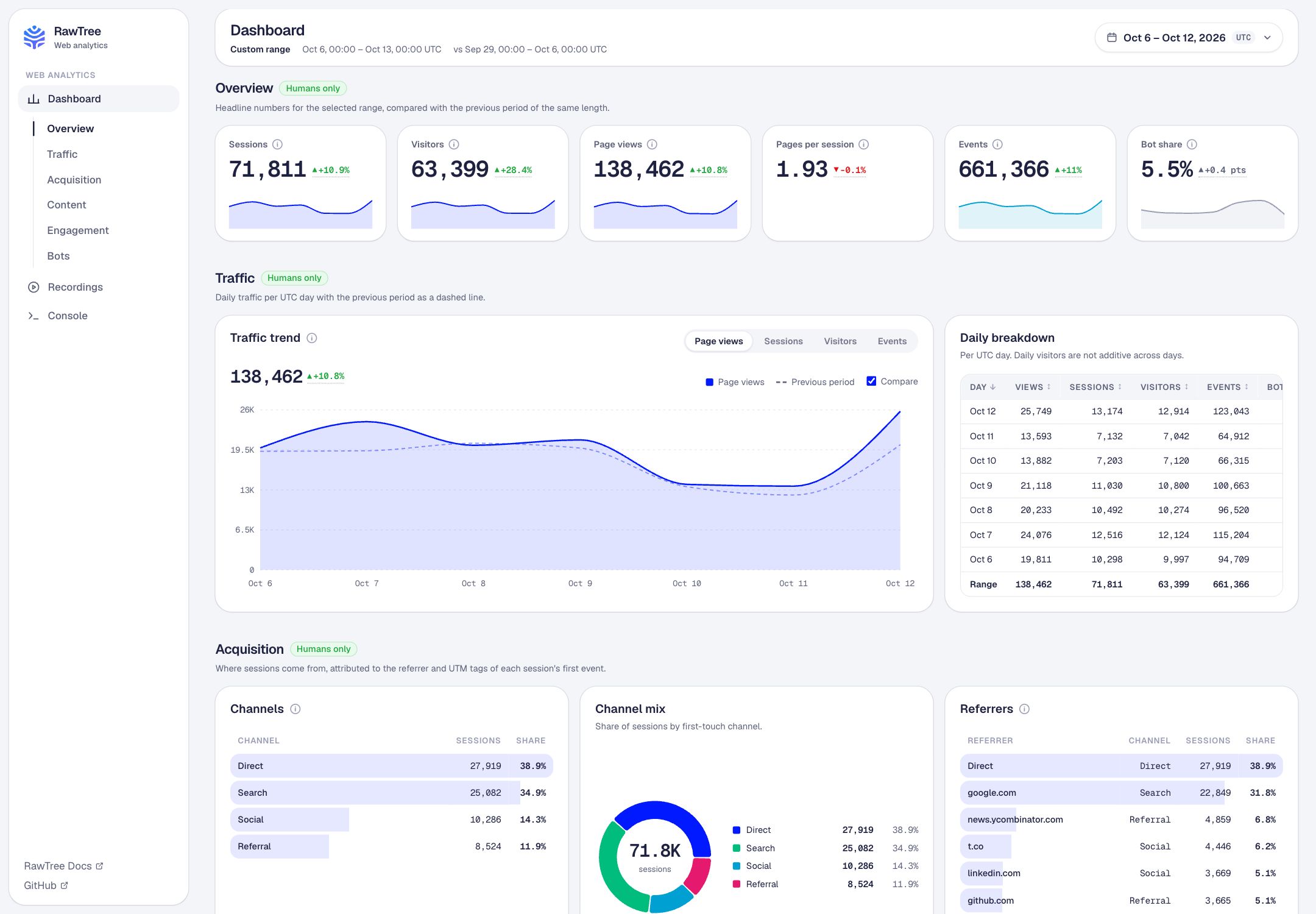

Dashboard, before and after. Badge text and chart series are darker for contrast, and cards use one ring edge. Shot on the synthetic demo_events data.

Before After
Before After
rawtree-console

public/overview.jpg is refreshed in this PR so the README matches the new colors.

🤖 Generated with Claude Code

- Fix the /?range=toString crash and cap console route bodies at 64 KB.
- Add a same-origin check to the console storage route.
- Sanitize the server SDK pageUrl like the browser client (new allowedQueryParams option).
- Update outdated dependencies and remove unused ones.
- Share one Button, card, input, and focus style. Replace arbitrary values with scale values.
- Raise badge colors to WCAG AA contrast and remove unused tokens.
- Move branding to lib/site.ts and derive engagement labels from the query constants.
- Rewrite the README, SDK README, CONTRIBUTING, and AGENTS.md so each fact lives in one place.

Co-Authored-By: Claude Opus 5.5 (1M context) <noreply@anthropic.com>
@pei-tinybird
pei-tinybird requested a review from a team as a code owner October 13, 2026 14:30
@pei-tinybird pei-tinybird self-assigned this Oct 13, 2026
pei-tinybird and others added 3 commits October 14, 2026 15:46
Co-Authored-By: Claude Opus 5.5 (1M context) <noreply@anthropic.com>
…per file

- components/ui/: generic primitives and shared class strings (styles.ts).
- components/dashboard/: cards, grid, bar list, charts, data table, date filter.
- components/console/: one file per console card; console-store.ts unchanged.
- app/(dashboard)/_sections/: one file per dashboard section; page.tsx loads data and lays out.
- Remove stale code: SegmentedLinks, props no caller passes, unused exports.
- Point the README, AGENTS.md, and lib/queries.ts at the new paths.

Co-Authored-By: Claude Opus 5.5 (1M context) <noreply@anthropic.com>
- Keep stat values on one line so "1 : 0.28" doesn't wrap.
- Show the API key command as its own scrollable code block on sign-in.
- Link the live demo at the top of the README.

Co-Authored-By: Claude Opus 5.5 (1M context) <noreply@anthropic.com>
@pei-tinybird
pei-tinybird merged commit 4eda14a into main Oct 14, 2026
1 check passed
@pei-tinybird
pei-tinybird deleted the feature/project-cleanup branch October 14, 2026 14:37
