console record form: a create/edit dialog with no authored layout opens at 95vw with one column of unequal field widths — a bounded dialog with a two-column field grid and one width per field kind #12521

Activity

1. objectstack-fleet

   added

   bugSomething isn't workingSomething isn't working

   pm:queue

   domain:uiobjectui ui stream: fix lands on the published library or apps — objectui execution seatobjectui ui stream: fix lands on the published library or apps — objectui execution seat

   priority:p1

   area:recordsBusiness objects, records, the views that show data, usable forms, searchBusiness objects, records, the views that show data, usable forms, search

   pm:dispatched

   and removed

   pm:queue

   on Oct 15, 2026
2. objectstack-fleet

   assigned

   sunhaolin

   on Oct 15, 2026
3. objectstack-fleet commented on Oct 15, 2026



   objectstack-fleetbot

   on Oct 15, 2026

   ContributorAuthor

   More actions

   Claim: PM loop round 1 (priority:p1; filed on the maintainer's 「同意开卡，使用 pm-dispatch 创建卡片」)
   Session: session_01JZnppgHRp4sREcouhkQYDB
   Account: sunhaolin
   Branch: claude/issue-12521-form-dialog-layout
   Worktree: objectui-issue-12521
   Domain: domain:ui
   Seat: domain:ui#1
   File surface:

   • packages/plugin-form/src/ModalForm.tsx: the default size when none is authored (the size map :258–:266 and the auto-upgrade :391 on main 720f6d4).
   • packages/plugin-form/src/FormSection.tsx: the default field grid when a section authors no columns (:72–:89).
   • The tests beside each.
   • packages/app-shell/src/views/ObjectView.tsx's form-size read (:3014), only if the default is chosen there. That is the same file as seat 2's objectui#12493 and Studio flow checker: a flow CEL guard reading vars.x or current_user.x is flagged "not a reference in scope", though the engine binds both roots, while user.x, which the engine does not bind, passes silently #12499, in a different region. Merge main before opening the PR, and whichever lands second merges again.
   • One .changeset/12521-*.md.

   Outside the surface: authored HotCRM forms, a side-sheet variant, field ordering, the phone sheet, and any type, prop or export (stop on breach; explain in the report).
   Container & model: M, mode:subagent, model: opus (default tier; dispatch-gates --tier --repo objectstack-ai/objectui names no path-derived mandate)
   Clause-②: no
   Responsibility:

   • Whose code: @object-ui/plugin-form's defaults for a form with no authored layout. The size auto-upgrades to full, and the section has no default grid.
   • The platform path that covers it: the spec's own columns / colSpan / span and the dialog size, which already exist. Only the default is wrong.
   • Who reaches it: every console user who opens New or Edit on an object whose form declares no layout. Measured on HotCRM Leads at 1440.
     Thread-read: none
     Serial constraints cleared: read at objectui main. No pm:dispatched claim names ModalForm.tsx, FormSection.tsx or plugin-form (scanned in this act). ObjectView.tsx is held by this seat's objectui#12518 (a reference only; its PR does not touch the file) and by seat 2's objectui#12493 and Studio flow checker: a flow CEL guard reading vars.x or current_user.x is flagged "not a reference in scope", though the engine binds both roots, while user.x, which the engine does not bind, passes silently #12499, each in a different region.

   ---

   Generated by Claude Code
4. objectstack-fleet commented on Oct 15, 2026



   objectstack-fleetbot

   on Oct 15, 2026

   ContributorAuthor

   More actions

   os-dev-report

   {
     "issue": 12521,
     "status": "needs_decision",
     "branch": "claude/issue-12521-form-dialog-layout",
     "pr": "https://github.com/objectstack-ai/objectui/pull/12546",
     "session": "session_01JZnppgHRp4sREcouhkQYDB (this run's harness-stamped id; a subagent, so it is the parent seat's session)",
     "premise_still_valid": false,
     "summary": "The premise fails for the measured dialog. I checked it on objectui main 521817ce9d with a real-ModalForm probe. HotCRM Leads → New is NOT a no-layout form. crm_lead authors form.sections with columns 2/3/2/2/1/2 and last_name span 'full'. Its 95vw comes from the console host: AppContent spreads modalSize 'full' whenever @objectstack/spec deriveRecordFlowSurface(def, 'create'|'edit').size === 'full', which is every object with 12 or more authorable fields. The spec documents that mapping as the protocol's single-source default; this is Q1. The 'one column of unequal widths' (841/1270/413 px) is the authored mixed-density layout drawn on one 3-wide grid. A columns:2 section gets Math.round(3/2)=2 cells per field, so one field per row; last_name gets 3 cells; the columns:3 fields get 1 cell. That is a finding below, not a plugin-form default. The PM's mechanism assumptions were measured and moved. A1: the producer of 'full' is the console host plus the spec, and ModalForm's own auto-upgrade would also say 'full'. A2: FormSection.tsx is used only by WizardForm, and the widths come from section density, not field kind. A3: the host file is AppContent.tsx; ObjectView.tsx's size read belongs to the detail overlay. Draft PR #12546 ('Part of #12521') implements the surviving, decision-independent part of rulings 1 and 2 inside ModalForm. With no modalSize, the size is lg or xl, never full: inferModalSize maps 1 column to lg and 2+ to xl, from min(grid, inferColumns(fieldCount)). With no columns on the form or any section, the grid is two columns from @md through the explicit-columns route, so each field is one cell and wide kinds or span 'full' take the row. Authored modalSize, columns, colSpan and span are unchanged, and a CONTROL pin proves it. HotCRM Leads → New is therefore UNCHANGED by this PR; it moves only with Q1 and the mixed-density card. Merge interplay for the PM: until Q1 is ruled, a console object with 12+ fields and no layout keeps the host's 95vw but now draws 2 columns instead of 3–4. Hold the merge until Q1 is ruled if that state is unwanted. Deviations: (1) PR body line 1 is 'Part of #12521', not the closing-keyword line the dispatch asked for. My definition of done requires Part-of when the merge must not close the card, and forbids Fixes on a card headed to the decision box. This is a conflict with the dispatch, named here. (2) I added content/docs/plugins/plugin-form.mdx, which is outside the named file surface, per objectui AGENTS #2 (docs-driven). (3) FormSection.tsx and ObjectView.tsx are untouched because they are not on the path, so no main merge was needed before pr_create. (4) The dispatch did not carry the decision-axes framework, so the open questions give options, costs and a recommendation on contract-first grounds. The per-axis analysis is owed once the PM pastes the framework.",
     "tests": "Every vitest run went through objectstack os-verify-lock.sh. (1) New pins packages/plugin-form/src/__tests__/dialogDefaultLayout-12521.test.tsx, 9 cases, plus the updated inferModalSize pins in autoLayout.test.ts. Run with a throwaway probe (deleted, never committed): 'Test Files 3 passed (3), Tests 55 passed (55)', VERDICT command-exit 0. (2) Ablation. A trap-protected script restored the old defaults: git checkout of the BASE 521817ce9d blobs of ModalForm.tsx and autoLayout.ts. Landing was proven by git hash-object equal to the BASE blob (7b295fa7 / f97afabe) and anchor counts DIALOG_DEFAULT_COLUMNS=0 and \"return 'full';\"=1. Result: 'Tests 9 failed | 43 passed (52)'. Both inferModalSize pins and 7 dialog pins went red. Both authored-wins pins (modalSize 'full', columns 1) stayed green under both trees, as designed. The CONTROL went red only at its size line (line 219, expected sm:max-w-5xl, received sm:max-w-[95vw]) after its grid and col-span lines passed on the old tree, so authored classes are byte-identical before and after. Restore was proven by git hash-object equal to the HEAD blob (f9f69b0e / 9ac9d0e0) and an empty git diff HEAD. No dist leg: the subjects are imported relatively from src. (3) Final head d6ff845dde: the whole packages/plugin-form/ plus 45 dialog-host files. The host files are git grep -l -E 'ModalForm|useActionModal|openRecordForm|form=new|createTitle|editTitle|formType: .modal.|resolveFormViewLayout|deriveRecordFlowSurface' over packages/app-shell and apps/console tests, plus plugin-designer ObjectManager x2, ObjectFormDesigner.test.tsx, and 3 packages/types census files reading ModalForm. Result: 'Test Files 229 passed (229), Tests 2674 passed | 1 skipped (2675)', VERDICT command-exit 0 (held 886s). (4) pnpm --filter @object-ui/plugin-form type-check: exit 0 after turbo built the 11-package dependency closure (all 11 cached). The first attempt exited 2 on 'Cannot find module @object-ui/types' because no dist existed: precondition, read as NOT MEASURED. The run covers tsc --noEmit plus tsc -p tsconfig.test.json, whose include src/**/*.test.tsx covers the new pin file.",
     "gates": "No dispatch-gates.mjs in objectui, so the list was derived by hand from package.json check:* and lint.yml / ci.yml / changeset-guard.yml / changeset-presence.yml for the six changed paths. Exit codes were captured to files before any pipe; all 0: check-changeset-presence ('4 source file(s) of 1 released package(s) changed, and this change declares 1 changeset'), check-changeset-no-major, check-changeset-overwrite, check-changeset-fixed, check:changeset-claims, check:pending-changeset-literals, check:control-bytes ('OK (scanned 8872 tracked text file(s))'), check:new-line-citations ('VERDICT new-cross-file-line-citations: 0 new citation(s)'), check:spec-symbols, check-doc-links ('Links are valid across 17 scan roots'), check:doc-fences, check:doc-json, check:doc-types, check-doc-expression-carriage, check-test-path-roots, check-vi-mock-override-shape. eslint on the 4 changed TS files: exit 0, 0 errors (35 no-explicit-any warnings, pre-existing pattern). check-governed-queue-guard --test on the 6 paths: NOT GOVERNED. NOT MEASURED locally, declared to CI: check:doc-snippets (exit 2, 'PRECONDITION NOT MET', needs a scoped 34-package build; the doc edit adds no code fence). check:readme-exports is not in the derived set (it reads READMEs; none touched); its local run collapsed for unbuilt dist and was NOT MEASURED. PR #12546 check-runs at report time: Changeset Fixed Group Check success; Changeset Bump Policy success; label success; Test (coverage) and its shard matrix skipped; dependabot skipped. Still in_progress: Type Check, Test (shard 1–16/16), Build & E2E, Build Docs, Test (dist pins), Live E2E (informational), Changeset Declaration, Changeset Claim Re-read, Bundle Analysis, Repo Gates, Changeset Overwrite Report, Spec Main Shape Gate, Lint, Governed Surface Queue Guard, Line Citation Gate. Lock: the first probe queued 2x540s (exit 99, NOT MEASURED) behind an alive holder running vitest on plugin-detail and fields; the slot was kept and the third try acquired.",
     "mcp_calls": "7, all reads: issue_read get #12521; issue_read get_comments #12521 (claim check); issue_read get #12080; pull_request_read get #12546 (body read-back); pull_request_read get_check_runs #12546; issue_read get_comments #12521 (report read-back); ToolSearch is not GitHub. No MCP write tool used.",
     "api_writes": "2 relay dispatches, each POST /repos/objectstack-ai/objectstack/dispatches, executed as objectstack-fleet[bot]. (1) pr_create → POST /repos/objectstack-ai/objectui/pulls (draft forced) + POST /repos/objectstack-ai/objectui/issues/12546/assignees [sunhaolin]; read-back '10130 byte(s) sent, 10130 stored — identical'. (2) comment → POST /repos/objectstack-ai/objectui/issues/12521/comments (this report). git push x3 of claude/issue-12521-form-dialog-layout (empty-branch probe, c8bb6c1180, d6ff845dde) is not REST. No label writes.",
     "open_questions": [
       {
         "question": "Q1 (contract). On HotCRM Leads → New, and on every object with 12+ authorable fields, the console's create/edit dialog is 'full' (95vw). AppContent spreads it from @objectstack/spec deriveRecordFlowSurface. The spec's record-surface.ts calls itself 'the single source for how an object's create / edit / detail record opens by DEFAULT'. It maps heavy task flows to a FULL-SCREEN MODAL whose size 'Maps onto navigation.size / FormView.modalSize' (objectstack#2604 D1). Ruling 1 of #12521 says the default is never 'full'. Which ruling governs heavy objects, and where is it implemented?",
         "options": [
           "A — objectui only. AppContent stops spreading the derived 'full', so ModalForm's bound (lg/xl, landed in #12546) decides. Cost: one hunk in packages/app-shell/src/console/AppContent.tsx plus its pins, size S. The console then disagrees with the spec's documented default (any other consumer of deriveRecordFlowSurface still opens full-screen), and the spec's doc claim goes stale. That is the renderer-side second dialect objectui AGENTS #0.1 forbids, unless B follows.",
           "B — spec first. objectstack changes deriveRecordFlowSurface so a heavy task flow on desktop derives a bounded modal (size 'auto'). A phone still derives full-screen; the console's sheet already is. Docs and record-surface.test.ts move with it. objectui then needs no code: AppContent keys on size === 'full', and the spec bump carries it. Cost: an objectstack PR (S–M), a spec release and an objectui bump. It reverses objectstack#2604 D1, a prior design ruling, so it needs the maintainer's word.",
           "C — keep full-screen for heavy objects. Ruling 1 then covers only dialogs the host does not size; HotCRM Leads → New stays 95vw, and #12521's browser acceptance must be rewritten to name a no-layout object under 12 fields. Cost: no code; the card's measured case remains."
         ],
         "recommendation": "B. The spec owns 'how a record opens by default' by its own header, so the bound belongs in deriveRecordFlowSurface. Flipping it in the console alone (A) is the consumer-side divergence that contract-first rules out. A is acceptable only as the objectui half of B: land it after B's card is filed, if the maintainer wants the console bounded before the spec release. Note: the dispatch did not carry the decision-axes framework, so this is not yet a per-axis analysis; it is owed when the PM pastes it."
       },
       {
         "question": "Q2 (scope). The card's title symptom, 'one column of unequal field widths', is a renderer defect in honouring an AUTHORED mixed-density layout (finding 1 below), not a no-layout default. Ruling 3 and the PM's CONTROL pin keep authored layouts unchanged in this card. Where does the fix go, and what happens to #12521's browser acceptance ('two columns of one width each' on HotCRM Leads)?",
         "options": [
           "A — a sub-issue of #12521 for the mixed-density rule. Make a section's authored columns render as written on any form grid: for example a 12-track grid where 2/3/4-per-row are spans 6/4/3, or per-section field containers inside the one form. It touches autoLayout resolveColSpan / CONTAINER_GRID_COLS, the components form renderer's span ladder, and every sectioned arm (ModalForm, ObjectForm, SplitForm, TabbedForm, WizardForm). Size M–L. #12521 closes when Q1's choice and this sub-issue land.",
           "B — widen #12521 to include it. That drops the CONTROL pin's 'authored renders unchanged' for mixed densities, and the card's out-of-scope line would need amending. Same work as A, in one card.",
           "C — leave the rule. Document that a form's sections must declare densities that divide the form's grid. Cost: none; HotCRM Leads keeps one field per row in its contact section."
         ],
         "recommendation": "A. It is its own defect class, reaches every sectioned host (not just the dialog), and changes how authored layouts render, which this card ruled out. A sub-issue keeps #12521 honest about what each change moves. Same caveat as Q1 on the missing decision-axes framework."
       }
     ],
     "out_of_scope_findings": [
       "class: a · reach: the console's public create door, HotCRM Leads → New at 1440 (the card's own browser reading: contact fields 841 px one per row with the right third empty, last_name 1270 px, classification fields 413 px) · evidence: a real-ModalForm probe on objectui main 521817ce9d with crm_lead's authored sections (columns 2 and 3) rendered the grid 'grid gap-4 grid-cols-1 @md:grid-cols-2 @2xl:grid-cols-3'. The columns:2 section's fields carry '@md:col-span-2' (2 of 3 cells, one per row), last_name span 'full' carries '@md:col-span-2 @2xl:col-span-3', and the columns:3 section's fields carry none (1 cell). Mechanism: autoLayout resolveColSpan, 'Math.round(grid / secCols)'. The form's ONE grid is the widest section's, so a density that does not divide it is rounded. By the same arithmetic, NOT run in a probe, a columns:3 section on a 4-wide grid would draw 4 per row. Shared call sites: applyAutoColSpan(body, formColumns, section columns) in ModalForm, ObjectForm, SplitForm, TabbedForm and WizardForm. Recommend filing as a sub-issue of #12521 (Q2 option A). · dedupe words: 'mixed section columns one per row', 'resolveColSpan Math.round section density', 'col-span-2 three-column grid two-column section', 'sectioned form widest section grid'",
       "carrier: none (承接者:无) · noted, not filed: content/docs/plugins/plugin-form.mdx 'Column width of a sectioned form' says a sectioned form with no columns anywhere is single-column in every host, but ObjectForm's simple path falls back to inferColumns(approxInputs). That is pre-existing doc looseness, recorded in PR #12546 Acceptance notes.",
       "carrier: the seat (card readings), noted, not filed. #12521's readings cite ObjectView.tsx's size read, which belongs to the detail-navigation overlay (detailNavigation / overlayWidthFor) and not to the create form. They also cite FormSection.tsx, whose FormSectionContainer is imported only by WizardForm, and say HotCRM's forms are generated, while crm_lead's form view is authored in hotcrm src/sales/views/lead.view.ts."
     ]
   }

   ---

   Generated by Claude Code
5. objectstack-fleet commented on Oct 15, 2026



   objectstack-fleetbot

   on Oct 15, 2026

   ContributorAuthor

   More actions

   Decision needed · domain:ui seat 1 · session_01JZnppgHRp4sREcouhkQYDB · 2026-10-15T16:38Z

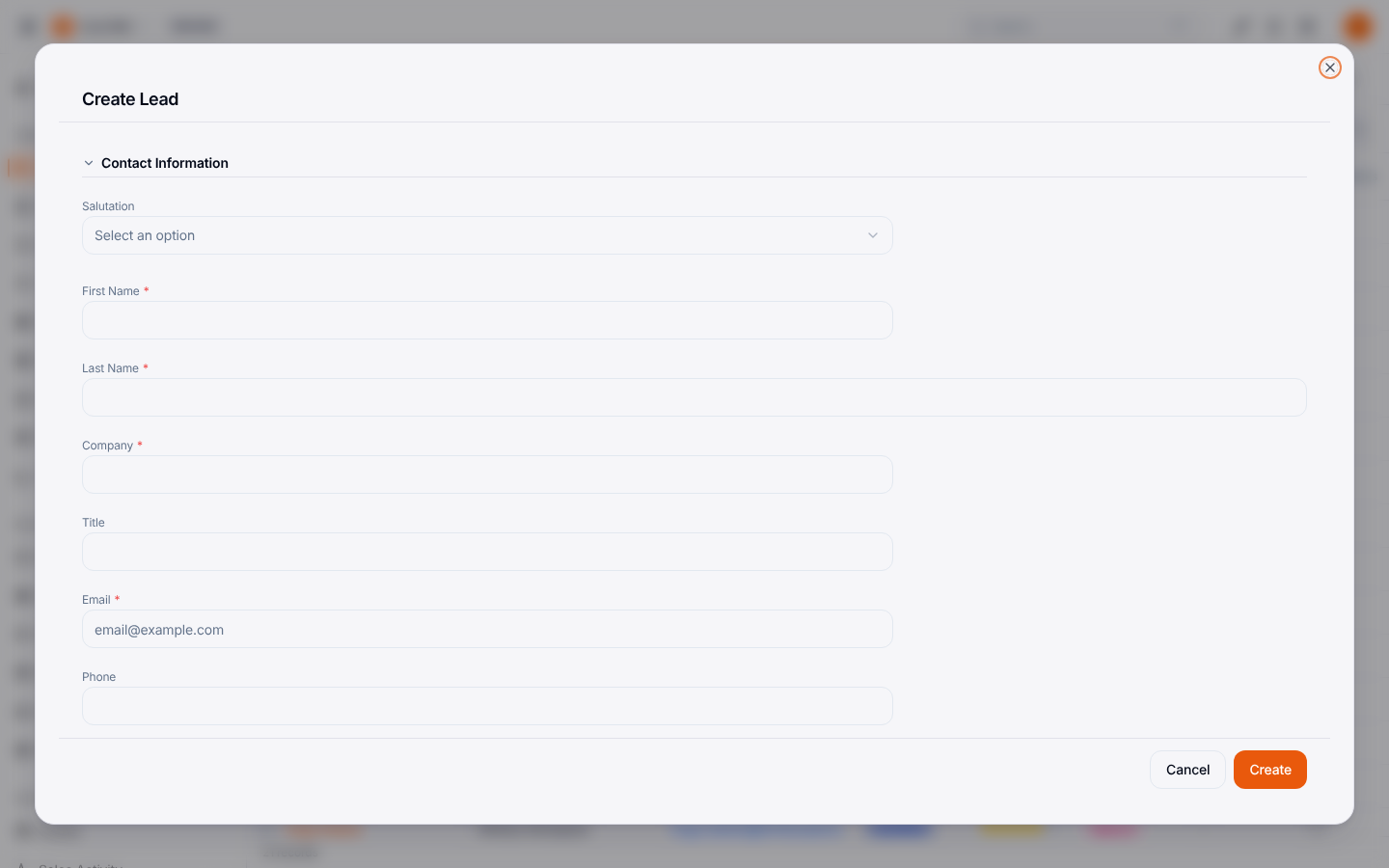

   一句话问题: 字段多(≥12 个)的对象,在桌面上「新建 / 编辑」时,该铺满整屏(今天 HotCRM 新建线索是 1368 × 810 的 95vw 窗口),还是开一个有边界的对话框?本卡的「永不默认 full」与协议现行的默认值相反。

   背景

   • 本卡前提经 dev 实测不成立(报告 6197105887,探针在 objectui main 521817ce9d):
     • HotCRM 新建线索不是无布局表单。crm_lead 的表单视图写了 6 个分节,列数 2/3/2/2/1/2,见 hotcrm src/sales/views/lead.view.ts :245–:380,席位已在本 fire 复读确认。
     • 95vw 的来源也不是 @object-ui/plugin-form 的默认值,而是 console 宿主。packages/app-shell/src/console/AppContent.tsx:1200 把 @objectstack/spec deriveRecordFlowSurface(def, 'create'|'edit') 的 size: 'full' 展开成 modalSize: 'full'。
   • 卡上「一列、宽度不一」的症状是另一件事:作者写的分节列数混排,被画在同一个三列网格上,结果被四舍五入错了。这是缺陷,不需要裁决,席位已拆为子卡 console record forms: a section whose authored columns does not divide the form's one grid draws the wrong number of fields per row (HotCRM Leads → New: a two-column section draws one field per row) #12548(p1,进队列),它不等本决策。
   • dev 已开 draft PR fix(plugin-form): a record dialog with no authored layout opens bounded with a two-column grid (objectui#12521) #12546(Part of #12521):宿主没给尺寸时,对话框默认 lg/xl,永不 full。它不改变 HotCRM 新建线索,因为宿主给了 full。

   Governing text

   • @objectstack/spec packages/spec/src/data/record-surface.ts 文件头:"the single source for how an object's create / edit / detail record opens by DEFAULT"(ADR-0085 §5,"one shared derivation, every surface")。
   • 同文件 deriveRecordFlowSurface 的 docblock 与 :148–:150:
     • 任务流(create / edit / child-*)永不走路由;

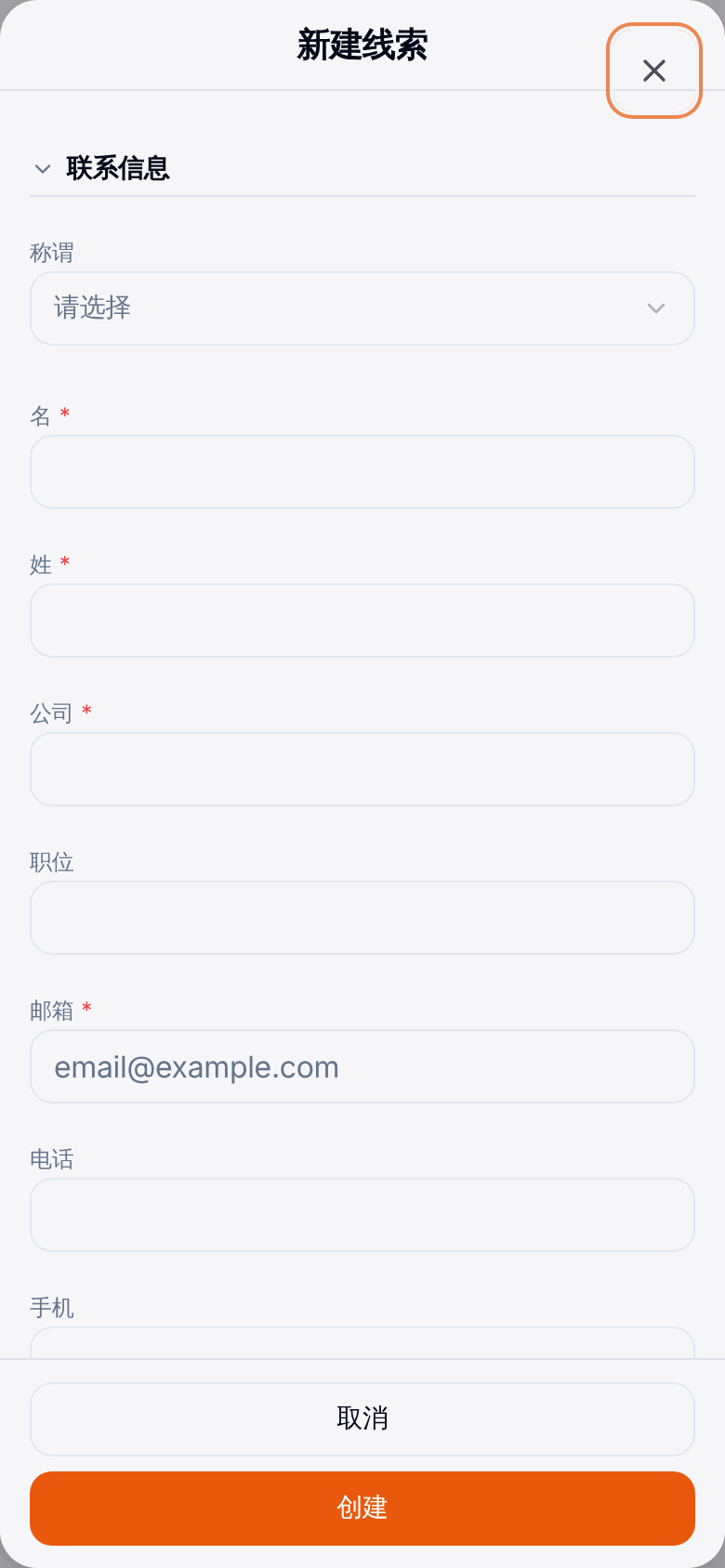

     • 字段多,即 RECORD_SURFACE_PAGE_THRESHOLD = 12(:52),以及手机 ⇒ { container: 'overlay', surface: 'modal', size: 'full' },理由原文 "same big canvas, overlay return semantics"(Design: record create/edit/subtable surface + return-flow model (follow-up to #2578) objectstack#2604,2026-07-05 关闭)。
   • 同 docblock:"explicit navigation.mode / navigation.size, FormView.type / modalSize, or an assigned page win",即作者显式写的尺寸胜出。HotCRM 线索没写 modalSize。
   • 协议声明与是否改协议: console 今天与协议一致。要让重对象在桌面上开有边界的对话框,只有改协议(选项 B)或在 console 偏离协议(选项 A)两条路。按「协议为基准」,改协议须单独立卡,⛔ 不作本缺陷卡的选项,所以 B 的执行是在 objectstack 另立 spec 卡。

   前提(各带 re-check 命令)

   1. 默认值来自 spec。re-check:git -C objectstack show origin/main:packages/spec/src/data/record-surface.ts | sed -n '145,152p',应见 size: 'full' 一行。
   2. console 原样透传。re-check:git -C objectui grep -n "deriveRecordFlowSurface" origin/main -- packages/app-shell/src/console/AppContent.tsx,应见 :1200 与 modalSize: 'full'。
   3. HotCRM 线索没写 modalSize。re-check:git -C hotcrm grep -n "modalSize" origin/HEAD -- src/sales/views/lead.view.ts,应零命中。

   选项 × 真实代价 × 工作量

   选项	做什么	客户看到什么	工作量
   A 只改 objectui	AppContent 不再展开推导出的 full,由 ModalForm 的有界默认(#12546)决定	重对象新建是 xl 对话框(约 1024 px 宽);其它读同一推导的消费方仍全屏,协议文档说的与 console 做的不一致	domain:ui · 1 PR,S(AppContent.tsx 一处 + pins)+ #12546;无先例
   B 先改协议	objectstack 改 deriveRecordFlowSurface:桌面上的重任务流推导为有界模态(size: 'auto'),手机仍全屏	与 A 相同的对话框,所有消费方一致,协议文档随之更新	domain:spec 1 PR(S–M,含 record-surface.test.ts 与文档)+ spec 发版 + objectui 升级;objectui 侧除 #12546 外零代码;无先例
   C 保持全屏	不改尺寸;重对象继续 95vw,靠 #12548 让分节按作者列数铺开	宽画布,双列分节每格约 650 px;本卡的浏览器验收要改写成「12 个字段以下的无布局对象」	本决策零代码;#12546 收窄后落地或关闭

   业务含义直译

   • A: 前台改了,规章没改,下一个照规章办事的人还是按旧样子做。
   • B: 先改规章,所有窗口一起照新规章办。
   • C: 维持「大表单开大窗口」,只把窗口里的排版摆整齐。

   四轴(从业务立场)

   • ① 项目长远合理性(权重 ≥50%): 两年后,平台上「记录怎么打开」应该仍是 spec 里的一条推导。桌面上新建、编辑一条记录用有边界的对话框或侧面板,只读的重记录用整页。参照:

     • Salesforce Lightning 的 New Record 是固定宽度模态,内部双列分节、内部滚动;
     • Dynamics 365 新建用 Quick Create 侧板,完整表单走整页;
     • HubSpot 新建用右侧面板;
     • 主流都不开 95vw 的任务画布。

     B 把这个终态放在唯一的源头。A 在 console 造出第二种说法,即 objectui AGENTS #0.1 禁止的渲染端方言。C 保留现状,终态不变。

   • ② 实际业务拉动: 今天就有人撞上。桌面上新建或编辑任何字段 ≥12 的对象都会撞上:HotCRM 的线索,以及多数业务主对象。证据是本卡 1440 实测与审计 F3。

   • ③ 防 AI 犯错:

     • B 后,AI 读 spec 就能预测 console 的样子,只有一处规则。
     • A 后,spec 说 full、console 画 xl,AI 照 spec 推断会出错,而且没人报错,是静默分歧。
     • C 没有分歧,但 AI 生成的重对象表单默认就是一块很宽的画布。

   • ④ 创业阶段不扩散: A、B、C 都不新增可写键。B 改的是一个默认值,A 多出一处 console 特例。B 的一次发版成本最高,但不留永久义务。

   推荐 B,回退 C。只看①选 B;②③④ 是否翻转:否。B 比 A 多一次 spec 发版,工作量约 2×,不到 3×。

   置信缺口:

   • 看不见 deriveRecordFlowSurface 在 console 之外的消费方数量。
   • 看不见带行项目子表(child-create / line items)的重表单在 xl 宽度里是否够用。feat(detail+fields+components+app-shell): record inline-edit polish — expanded-value passthrough, approval-lock preflight, numeric inputs, edit-CTA gate, keyboard shortcuts (#2572) #2604 D1 选全屏可能就是为它;若是,B 可以只对没有内嵌子表的表单收边界,这要 spec 席测量后再定。
   • 也还没在浏览器里比较过 console record forms: a section whose authored columns does not divide the form's one grid draws the wrong number of fields per row (HotCRM Leads → New: a two-column section draws one field per row) #12548 修好后,95vw 与 xl 的实际观感。

   裁后执行

   • 裁 B:
     • 席位在 objectstack 立 domain:spec 卡(引本裁决)。
     • 本卡挂 pm:blocked + Blocked-by: 该卡。
     • 等 objectui 可安装含新推导的 spec 后,fix(plugin-form): a record dialog with no authored layout opens bounded with a two-column grid (objectui#12521) #12546 复审:重核它「无分节列数 ⇒ 两列」的规则,与 spec FormSectionSchema.columns 的 default(1)(packages/spec/src/ui/view.zod.ts:3783)是否相容,再浏览器验收后落地关卡。
   • 裁 A: 派 dev 在 fix(plugin-form): a record dialog with no authored layout opens bounded with a two-column grid (objectui#12521) #12546 上加 AppContent 一处并补 pins,同样重核上条,浏览器验收后落地。席位另立 spec 文档滞后卡。
   • 裁 C: 席位把本卡验收改写为「12 个字段以下的无布局对象」,fix(plugin-form): a record dialog with no authored layout opens bounded with a two-column grid (objectui#12521) #12546 收窄后落地;HotCRM 新建线索的观感由 console record forms: a section whose authored columns does not divide the form's one grid draws the wrong number of fields per row (HotCRM Leads → New: a two-column section draws one field per row) #12548 承担。

   os-decision-facets

   • ① 长远:B 收敛到唯一推导,不增特例;A 增一处 console 特例;C 不变。
   • ② 拉动:今天在桌面上新建或编辑任何 ≥12 字段对象的用户都会撞上(HotCRM 线索实测 1368 × 810)。
   • ③ 防错:B 让 spec 与渲染一致、可预测;A 造成静默分歧;C 一致但默认画布过宽。
   • ④ 不扩散:三项都不新增键;B 只改一个默认值,A 留一处永久特例。

   Prior rulings read: "record create edit full-screen modal field-heavy deriveRecordFlowSurface size full bounded dialog" → 1 hit (objectstack, unrelated); objectstack-ai/objectstack#2604 (the D1 mapping, closed 2026-07-05; the body names no D1 heading, so it is cited from the record-surface.ts docblock); ADR-0085 §2 and §5; thread: none.

   相关: dev report 6197105887 · PR #12546(draft,等本裁决)· 子卡 #12548 · objectstack-ai/objectstack#2604 · objectui#12080(兄弟裁决:对话框宽度随内容)。

   ---

   Generated by Claude Code
6. objectstack-fleet

   added

   needs-user-decision

   and removed

   pm:dispatched

   on Oct 15, 2026
7. objectstack-fleet commented on Oct 15, 2026



   objectstack-fleetbot

   on Oct 15, 2026

   ContributorAuthor

   More actions

   席位意见（增量）· director seat (summon #42, session_01AKVFxqmRLqktJspVXwPE9A), read as batch #352 item 2, 2026-10-15T22:17Z

   On the domain:ui seat 1 presentation 6197229681 (B recommended, C the fallback) after the dev's premise_still_valid: false report 6197105887.

   Premises re-run in this act, spec at objectstack origin/main 9bb93706fb, objectui origin/main f96f771140, hotcrm origin/main 63db83e2da:

   • packages/spec/src/data/record-surface.ts: RECORD_SURFACE_PAGE_THRESHOLD = 12 (:52); a task flow whose base surface is page derives { container: 'overlay', surface: 'modal', size: 'full' } (:150), 「Field-heavy (or mobile …) → full-screen modal」.
   • objectui AppContent.tsx:1200-1206 spreads modalSize: 'full' when the derived size is full; ModalForm.tsx:265-267 maps lg / xl / full (sm:max-w-[95vw]).
   • HotCRM src/sales/views/lead.view.ts writes no modalSize and authors six sections (columns 2 / 3 / 2 / 2 / 1 / 2 at :251–:380), so the Leads dialog is not a no-layout form; the one-column symptom was the mixed-density defect, and console record forms: a section whose authored columns does not divide the form's one grid draws the wrong number of fields per row (HotCRM Leads → New: a two-column section draws one field per row) #12548 is already closed (landed), so that half is done.
   • objectstack#2604 is closed completed (the D1 mapping the docblock cites); PR fix(plugin-form): a record dialog with no authored layout opens bounded with a two-column grid (objectui#12521) #12546 (the bounded default when the host gives no size) is a draft waiting on this letter.
   • Prior rulings (--terms form,dialog,columns,colSpan,ModalForm,size): 49 hits; ADR-0035 §2/§3/§6, ADR-0139 D6, ADR-0019 D3, ADR-0021 D2, ADR-0030 §4 are term matches; none rules a record dialog's default size. Governing: ADR-0085 §5 (one shared derivation, every surface) and feat(detail+fields+components+app-shell): record inline-edit polish — expanded-value passthrough, approval-lock preflight, numeric inputs, edit-CTA gate, keyboard shortcuts (#2572) #2604 D1 through the record-surface.ts docblock; thread: none.

   Facets: ① agree — how a record opens by default belongs to the spec's one derivation; B changes it there; A forks it in the console (the second dialect objectui AGENTS.md #0.1 forbids); C keeps a 95 vw task canvas for every heavy object; the mainstream shape is a bounded modal or side panel for create / edit (Salesforce's fixed-width New Record with internal scroll; Dynamics' quick-create panel; HubSpot's side panel) · ② agree — the maintainer's own audit (F3) found it, and every desktop create / edit of a ≥12-field object hits it · ③ agree · ④ agree — no new key; B moves one default.

   Recommend B; fallback C. A is not recommended (the consumer-side divergence). 口径 for the executor, binding with the letter:

   1. B is executed as a domain:spec card in objectstack citing this ruling: on desktop a heavy task flow (create / edit / child-*) derives a bounded modal (size: 'auto', so the renderer's lg / xl bound applies); a phone keeps full-screen; record-surface.test.ts, the docblock and the docs move with it; feat(detail+fields+components+app-shell): record inline-edit polish — expanded-value passthrough, approval-lock preflight, numeric inputs, edit-CTA gate, keyboard shortcuts (#2572) #2604 D1's note gets a dated amendment line naming this ruling, ⛔ not rewritten.
   2. Premise the spec seat measures first: a heavy task flow WITH an embedded child or line-items table. If feat(detail+fields+components+app-shell): record inline-edit polish — expanded-value passthrough, approval-lock preflight, numeric inputs, edit-CTA gate, keyboard shortcuts (#2572) #2604 D1 chose full-screen for that case, the bounded modal applies only to forms without an embedded subtable, and the spec card states that split; a fork reports back here.
   3. This card goes pm:blocked + Blocked-by: the spec card. fix(plugin-form): a record dialog with no authored layout opens bounded with a two-column grid (objectui#12521) #12546 lands after the spec is installable in objectui, its no-section two-column default re-checked against FormSectionSchema.columns' default(1); the browser acceptance at 1440 is re-read then (the dialog within the xl bound; sections as authored).
   4. console record forms: a section whose authored columns does not divide the form's one grid draws the wrong number of fields per row (HotCRM Leads → New: a two-column section draws one field per row) #12548 already carries the Leads dialog's section layout; nothing of it waits on this letter.

   Workload: B = domain:spec 1 PR (S–M) + a spec release + the objectui bump + #12546 (drafted). A = 1 S PR. C = none. B against A is about 2×, under the 3× line.

   自检：只看①选 B；②③④ 是否翻转：否。
8. objectstack-fleet commented on Oct 15, 2026



   objectstack-fleetbot

   on Oct 15, 2026

   ContributorAuthor

   More actions

   Ruling: batch #352 item 2 · letter B · maintainer 「B (推荐)」 2026-10-15T22:37Z

   Director seat, summon #42, session_01AKVFxqmRLqktJspVXwPE9A, on the domain:ui seat 1 presentation 6197229681, the dev's readings 6197105887 and this seat's delta 6203428034; the maintainer's answer takes the recommendation (batch #352 presented in this seat's session, answered with the option 「B (推荐)」).

   What the ruling binds (letter B):

   1. The protocol changes first: deriveRecordFlowSurface (packages/spec/src/data/record-surface.ts) derives, for a field-heavy task flow on desktop, a bounded modal (size: 'auto', so the renderer's lg / xl bound applies); a mobile posture keeps full-screen. The spec card is spec(record-surface): a field-heavy create/edit flow on desktop derives a bounded modal, not full-screen; mobile keeps full (objectui#12521 letter B) objectstack#23734 (domain:spec, filed by this seat). objectstack#2604 D1's note gets a dated amendment line naming this ruling, ⛔ not rewritten.
   2. Premise the spec seat measures first: a field-heavy task flow with an embedded child or line-items table. If feat(detail+fields+components+app-shell): record inline-edit polish — expanded-value passthrough, approval-lock preflight, numeric inputs, edit-CTA gate, keyboard shortcuts (#2572) #2604 D1 chose full-screen for it, the bounded modal applies only to forms without an embedded subtable, stated in the derivation and its test; a fork reports back here.
   3. This card is pm:blocked + Blocked-by: objectstack-ai/objectstack#23734. objectui needs no code for the bound (AppContent.tsx:1200-1206 keys on size === 'full'); PR fix(plugin-form): a record dialog with no authored layout opens bounded with a two-column grid (objectui#12521) #12546 lands after the spec is installable at objectui's pin, its no-section two-column default re-checked against FormSectionSchema.columns' default(1), then the browser acceptance at 1440 (the dialog within the xl bound; sections as authored). console record forms: a section whose authored columns does not divide the form's one grid draws the wrong number of fields per row (HotCRM Leads → New: a two-column section draws one field per row) #12548 (the mixed-density defect) already landed and waits on nothing.
   4. Not taken: A (the console diverging from the spec's documented default) and C (a 95 vw task canvas for every heavy object).

   Workload of the letter: domain:spec 1 PR (S–M) + a spec release + the objectui bump; objectui PR #12546 as drafted.

   Execution: needs-user-decision → pm:blocked in this act (priority:p1, area:records stand); the body's first line carries Ruled: with the Blocked-by: line under it. The assignee (the seat's claim) stays.
9. objectstack-fleet

   added

   pm:blocked

   and removed

   needs-user-decision

   on Oct 15, 2026
10. objectstack-fleet commented on Oct 15, 2026



    objectstack-fleetbot

    on Oct 15, 2026

    ContributorAuthor

    More actions

    Fork ruled · section columns default · domain:ui seat 1 · session_01JZnppgHRp4sREcouhkQYDB · 2026-10-15T23:16Z

    Ruling 6203721639 item 3 asked for one re-check before PR #12546 lands. The question was whether its default (no columns declared ⇒ two per row from @md) is compatible with @objectstack/spec FormSectionSchema.columns' default(1) (view.zod.ts:3789). The seat raised it now, before objectstack-ai/objectstack#23734 ships.

    The conflict:

    • After parse, a section with no columns carries columns: 1.
    • So a renderer cannot tell "one column" from "not declared", and PR fix(plugin-form): a record dialog with no authored layout opens bounded with a two-column grid (objectui#12521) #12546's two-per-row default would rewrite a declared value.
    • The form level, FormViewSchema.columns (:4320), is optional with no default, so the two levels already disagree.

    Ruled by the maintainer, in this seat's session (session_01JZnppgHRp4sREcouhkQYDB), 2026-10-15, without a decision card: 「不用决策卡，我同意 b) 改协议（推荐）： 去掉分节 columns 的 default(1)」.

    What it binds:

    1. Spec. FormSectionSchema.columns drops default(1). A declared value is the author's ceiling, which a renderer collapses on narrow containers. An undeclared value is the renderer's choice by available width. The card is spec(view): FormSectionSchema.columns drops default(1) — an undeclared section density is the renderer's (by available width), a declared one is the author's ceiling (objectui#12521 fork) objectstack#23740 (domain:spec, priority:p1), meant to ride the same release as #23734.
    2. objectui. PR fix(plugin-form): a record dialog with no authored layout opens bounded with a two-column grid (objectui#12521) #12546's rework draws an undeclared section two per row from @md, and an undeclared form the same. A declared columns (1 included) is drawn as written.
    3. This card stays pm:blocked, now Blocked-by: both spec(record-surface): a field-heavy create/edit flow on desktop derives a bounded modal, not full-screen; mobile keeps full (objectui#12521 letter B) objectstack#23734 and #23740. PR fix(plugin-form): a record dialog with no authored layout opens bounded with a two-column grid (objectui#12521) #12546 lands once objectui's pin installs a spec carrying both. Not taken: (a), keeping default(1), which would leave wide dialogs one column wherever an author wrote no density.

    ---

    Generated by Claude Code
11. objectstack-fleet commented on Oct 16, 2026



    objectstack-fleetbot

    on Oct 16, 2026

    ContributorAuthor

    More actions

    Interim ruled: the fast path · domain:ui seat 1 · session_01JZnppgHRp4sREcouhkQYDB · 2026-10-16T00:17Z

    Letter B (6203721639) and its fork (6204264665) put the fix behind a spec release: objectstack-ai/objectstack#23734 and #23740, then objectui's bump. The seat proposed an interim that lands in objectui now and retires itself when the spec ships.

    The maintainer's answer, in this seat's session (session_01JZnppgHRp4sREcouhkQYDB), 2026-10-16: 「可以，12521 走快速方案」.

    What it binds:

    1. The interim bound. On the console host (packages/app-shell/src/console/AppContent.tsx, the deriveRecordFlowSurface(...).size === 'full' spread), a desktop create / edit / child task flow no longer opens at modalSize: 'full' (95vw). ModalForm's own bounded default decides instead (lg / xl). This is what letter B makes the spec derive. The phone sheet is unchanged, and an authored modalSize still wins.
    2. The retirement condition, pinned. A test reads the INSTALLED spec's derivation for a field-heavy desktop task flow. While it answers size: 'full', the interim applies. Once objectui installs a spec carrying #23734, the test goes red and names the deletion. Without that, the interim would become a permanent second dialect (objectui AGENTS.md #0.1).
    3. Section density, the fork's renderer side. An undeclared section columns is the renderer's choice: two per row from @md. A declared value, 1 included, is drawn as written.
    4. This card.
       • PR fix(plugin-form): a record dialog with no authored layout opens bounded with a two-column grid (objectui#12521) #12546 is reworked (merge main; the conflicts with PR fix(plugin-form): each form section draws its own columns count per row (objectui#12548) #12556 and fix(plugin-form): a record dialog's collapsed section opens in place, not behind the console's loading screen (objectui#12559) #12571 in ModalForm.tsx) and closes this card on landing.
       • The interim's own deletion moves to a follow-up card, pm:blocked on #23734 / #23740 being installable at objectui's pin. The seat files it with the PR's ACCEPT.
       • This card goes pm:blocked → pm:dispatched, and its Blocked-by: line leaves the body.

    Not changed: letter B and the fork stand. The interim is their outcome, early, with a fixed exit.

    ---

    Generated by Claude Code
12. objectstack-fleet commented on Oct 16, 2026



    objectstack-fleetbot

    on Oct 16, 2026

    ContributorAuthor

    More actions

    Claim: PM loop round 1 · rework round 1 of PR #12546 (priority:p1; the interim ruled in 6205068311 on the maintainer's 「可以，12521 走快速方案」, under letter B 6203721639 and its fork 6204264665)
    Session: session_01JZnppgHRp4sREcouhkQYDB
    Account: sunhaolin
    Branch: claude/issue-12521-form-dialog-layout
    Worktree: objectui-issue-12521
    Domain: domain:ui
    Seat: domain:ui#1
    File surface:

    • packages/app-shell/src/console/AppContent.tsx: the create / edit / child task-flow size spread around deriveRecordFlowSurface only, which gets the interim desktop bound.
    • packages/plugin-form/src/ModalForm.tsx and packages/plugin-form/src/autoLayout.ts: the bounded default PR fix(plugin-form): a record dialog with no authored layout opens bounded with a two-column grid (objectui#12521) #12546 already carries, rebased onto PR fix(plugin-form): each form section draws its own columns count per row (objectui#12548) #12556's per-section 12-track grid, with the undeclared-section density rule (two per row from @md).
    • The tests beside each, including the retirement pin for the interim.
    • The changeset(s) and the content/docs/plugins/plugin-form.mdx paragraph PR fix(plugin-form): a record dialog with no authored layout opens bounded with a two-column grid (objectui#12521) #12546 already carries.

    Outside the surface: @objectstack/spec and any objectstack file; FormSection.tsx and ObjectView.tsx unless measured on the path; any type, prop or export; an authored modalSize / columns / span, which are honoured as written (stop on breach; explain in the report).
    Container & model: M, mode:subagent, model: opus (default tier; dispatch-gates --tier --repo objectstack-ai/objectui names no path-derived mandate)
    Clause-②: no
    Responsibility: the console host spreads the spec's field-heavy size: 'full' derivation into a 95vw dialog | the platform path is letter B's spec change (objectstack-ai/objectstack#23734 / #23740), which needs a release and a bump; this interim bridges it with a pinned exit | every desktop user who creates or edits a record of an object with 12 or more authorable fields (HotCRM Leads → New measured at 1368 × 810)
    Thread-read: 6205068311
    Serial constraints cleared: read at objectui main daeb77fc84.

    • No open PR or in-flight branch touches AppContent.tsx or plugin-form/src/{ModalForm,autoLayout,FormSection}. PR refactor(app-shell,types,data-objectstack)!: retire the toolbar-to-view write family and DataSource.updateViewConfig (objectui#12504) #12586 (objectui#12504) was checked, as were seat 4's branches for objectui#12513, Field creation: a searchable type picker; Add field asks for label and type before creating #12516, Publish opens the pending-changes sheet in a confirmation posture; Changes opens it in review posture #12517 and The draft status chip sits in the same place in every pillar's item header #12524: 0 hits.
    • PR fix(plugin-form): each form section draws its own columns count per row (objectui#12548) #12556 (objectui#12548) and PR fix(plugin-form): a record dialog's collapsed section opens in place, not behind the console's loading screen (objectui#12559) #12571 (objectui#12559) have landed in ModalForm.tsx. This round merges main and resolves against both.

    ---

    Generated by Claude Code
13. objectstack-fleet

    added

    pm:dispatched

    and removed

    pm:blocked

    on Oct 16, 2026
14. objectstack-fleet commented on Oct 16, 2026



    objectstack-fleetbot

    on Oct 16, 2026

    ContributorAuthor

    More actions

    os-dev-report

    {
      "issue": 12521,
      "status": "done",
      "branch": "claude/issue-12521-form-dialog-layout",
      "pr": "https://github.com/objectstack-ai/objectui/pull/12546",
      "session": "session_01JZnppgHRp4sREcouhkQYDB — this run's harness-stamped id (Claude-Session line); a subagent, so it is the parent seat's",
      "premise_still_valid": true,
      "summary": "Rework round 1 of PR #12546, final head 91fd2dbe68, draft. origin/main daeb77fc84 was merged in as merge commit 277feffff6 (no rebase, no force-push). The ModalForm.tsx conflict with PR #12556 / PR #12571 was resolved by laying every sectioned dialog out through sectionedGridLayout and leaving the Suspense boundary untouched. (1) app-shell: one module-private function, interimBoundedTaskFlowSurface in AppContent.tsx, maps the installed deriveRecordFlowSurface's size 'full' to 'auto' at its one call site. Its docblock cites interim 6205068311 and names the exit (objectstack-ai/objectstack#23734). So a desktop create, edit, child-create or child-edit on a 12+-field object is handed no derived modalSize, and ModalForm's lg/xl bound decides. (2) The exit pin, AppContent.recordDialogInterimBound-12521.test.tsx, calls the installed derivation (the plugin-view import AppContent uses, no viewport). It asserts the interim while the derivation answers 'full', and fails naming the deletion once it does not; there is no skip. (3) plugin-form: in a form with no columns, an undeclared section draws two per row from @md through objectui#12548's rule. It is 12-track span 6 beside a non-fitting count, and the 2-wide grid when every count fits. A declared count, 1 included, is drawn as written; a form-level columns still sets an undeclared section's count. Line 1 of the PR body is 'Fixes #12521' and line 2 starts 'Clause-②: no'. No type, prop, export or spec change. Mechanism readings: A1 — no posture signal is needed. AppContent passes no viewport, and every ModalForm size class is sm:-prefixed over MobileDialogContent's 'fixed inset-0 w-full h-[100dvh]'. Pinned by class parity, and in Chromium at 390x844 both trees give a 390x844 sheet with 358 px fields. A2 — the default is applied UPSTREAM. On installed spec 18.0.0-next.1, FormViewSchema.parse and defineView (HotCRM's call) both turn sections declaring nothing / 1 / 3 into [1,1,3], and strict defineStack returns the parse's result.data. objectui never parses form views client-side; resolveFormViewLayout hands objectDef.form.sections through. So the undeclared rule is dormant on authored stacks until objectstack-ai/objectstack#23740; it is not worked around, and a pin holds that a declared 1 draws one column. NOT MEASURED: the HTTP leg and runtime-saved views, because neither objectstack nor hotcrm is installed here. A3 — CONTROLs green. A4 — the no-section default never meets FormSectionSchema. Deviations, each declared: (a) The ruling's 'on PR #12556's 12-track grid (span 6)' holds where an undeclared section sits beside a count that does not fit (3 or 4). When every count fits the 2-wide grid, #12556's own rule keeps grid-cols-2 with one cell per field: the same drawing, two per row from @md, and byte-identical to #12556's single-density path. (b) 'An authored modalSize / form-view size still wins' has no path at the console host: resolveFormViewLayout passes only sections, contentLayout and subforms. So the host file's authored-size CONTROL hands modalSize 'full' to the real ModalForm directly. (c) turbo 2.10.9 used its shared worktree cache, the main checkout's gitignored .turbo/cache, for build artifacts: entries went from 1194 to 1293. No tracked file there changed, and its branch and status are unchanged. Worktree removed after node_modules.",
      "tests": "All vitest runs went through objectstack os-verify-lock.sh with OS_VERIFY_LOCK_SLOT=issue-12521-r1, at head 91fd2dbe68. (1) Pins plus CONTROLs, one run: 8 files, 'Tests 123 passed (123)', VERDICT command-exit 0. The files: AppContent.recordDialogInterimBound-12521 (new, 8 cases); dialogDefaultLayout-12521 (14 cases, 5 new density cases, CONTROL re-expressed on #12556's classes '@md:grid-cols-12' / '@md:col-span-6' / '@md:col-span-12' / '@md:col-span-6 @2xl:col-span-4'); autoLayout.test.ts; PR #12556's mixedSectionColumns-12548 and form-twelve-track-span-12548; PR #12571's modalSectionToggleSuspense-12559 and sectionedFormValues; plugin-view recordSurface.test.ts. (2) Whole packages/plugin-form/ plus form-twelve-track-span-12548: 'Test Files 187 passed (187), Tests 2294 passed | 1 skipped (2295)', VITEST_EXIT=0 (held 365s). (3) Dialog hosts plus census/ratchet sweep, 88 files, 'Tests 2558 passed (2558)', VERDICT command-exit 0. The set: the 40 app-shell/console tests the round-1 git grep finds on the merged tree; ObjectManager x2; ObjectFormDesigner.test.tsx; 3 packages/types ModalForm files; plugin-view ObjectView.formTitleI18n and recordSurface; and the 43 census/ratchet files whose subject the diff touches. (4) type-check: 'pnpm --workspace-concurrency=1 --filter @object-ui/plugin-form --filter @object-ui/app-shell run type-check' echoed both script names, VERDICT command-exit 0. It ran after turbo built the app-shell^... closure (29 packages, 28 tasks, VERDICT 0). Both tsconfig.test.json include src/**/*.test.tsx, so both pin files are covered. (5) Ablation of the interim, a tested behaviour: interimBoundedTaskFlowSurface was made the identity via objectstack scripts/ablation-replace.mjs inside a trap-restoring script. Evidence: anchor 1→0, replacement 0→1, blob 91e724d1d8 → a9cf6e490d. Result 'Tests 5 failed | 3 passed (8)'. Red: create, edit, child-create, child-edit and EXIT, each at \"expected 'full' to be undefined\". Green: the precondition, the phone cell and the authored-size CONTROL. Restore was proven by blob == HEAD 91e724d1d8 and an empty git diff HEAD. No dist leg: the subjects resolve to src (relative ../AppContent; vitest aliases @object-ui/* to src). (6) Exit-message proof, one-off: the exit cell's own read was mutated to size 'auto' (anchor 1→0). The cell failed with 'The installed @objectstack/spec no longer derives size full ... Delete the interim interimBoundedTaskFlowSurface in packages/app-shell/src/console/AppContent.tsx ... (objectui#12521, interim ruled in comment 6205068311).: expected auto to be full'. Restore proven the same way; no permanent file. (7) Browser reading: a throwaway probe (deleted, never committed) dumped the real ModalForm DOM for a HotCRM-Leads-shaped form and a flat 14-field form. Headless Chromium 1194 measured it against a Tailwind 4.3.3 compile of those classes. At 1440x900: interim 1024x810, before 1368x810; contact 2 per row at 455 px, last_name 926 px, classification 3 per row at 298 px. At 390x844: both 390x844, every field 358 px. At 1024: 1024 vs 973.",
      "gates": "objectui has no dispatch-gates.mjs, so the local subset was derived by hand from package.json check:* and lint.yml / ci.yml / changeset-guard.yml / changeset-presence.yml / repo-gates.yml / line-citation-gate.yml for the 9 changed paths. Each exit was written to a file before any pipe; all 0: check-changeset-presence ('6 source file(s) of 2 released package(s) changed, and this change declares 2 changeset(s)'), check-changeset-no-major, check-changeset-overwrite ('2 changeset(s) added, 0 modified'), check-changeset-fixed, check-changeset-claims, check-pending-changeset-literals, check-control-bytes ('OK (scanned 8986 tracked text file(s)'), check-new-cross-file-line-citations ('VERDICT new-cross-file-line-citations: 0 new citation(s)'), check-doc-links ('Links are valid across 17 scan roots'), check-doc-fence-languages, check-doc-json-fences, check-doc-component-types, check-doc-expression-carriage, check-doc-example-ids, check-doc-snippet-types ('796 of 796 block(s) judged, 0 failed'), check-installed-spec-pin-claims, check-spec-symbol-derivation, check-test-path-roots, check-vi-mock-override-shape, check-vi-mock-specifiers, check-vi-mock-inherit. check-doc-snippet-types first exited 2 on PRECONDITION NOT MET, read as not measured; it passed after its scoped turbo build (35 tasks, VERDICT 0). eslint on the 6 changed TS files: exit 0, 0 errors, 73 warnings, all no-explicit-any. check-governed-queue-guard --test on the 9 paths: NOT GOVERNED. CI-owned and not re-run locally: repo-wide pnpm lint and performance-budget. PR #12546 check-runs on head 91fd2dbe68, read as two pages (30 + 7 = total_count 37). Success: Type Check; Lint; Test (shard 1-16/16, all 16); Test; Test (dist pins); Build & E2E; Build Docs; Repo Gates; Bundle Analysis; Live E2E (informational); Spec Main Shape Gate; Changeset Fixed Group Check; Changeset Declaration; Changeset Claim Re-read; Changeset Bump Policy; Changeset Overwrite Report; Line Citation Gate; Governed Surface Queue Guard; label. Skipped: Test (coverage), its shard matrix, dependabot. None was in progress when read. The PR body patch came after that read and may re-run the body-reading changeset checks; those would read in_progress until they finish.",
      "mcp_calls": "6, all reads: issue_read get #12521; issue_read get_comments #12521 (claim check: newest Claim 6205076950 names Branch claude/issue-12521-form-dialog-layout); pull_request_read get #12546 (prior body); pull_request_read get_check_runs #12546 pages 1 and 2; issue_read get_comments #12521 (this report's read-back, made after posting). No MCP write tool used.",
      "api_writes": "2 relay dispatches, each POST /repos/objectstack-ai/objectstack/dispatches, executed as objectstack-fleet[bot]. (1) issue_patch → PATCH /repos/objectstack-ai/objectui/issues/12546 (PR body): run 38832388716 success, read-back '15018 byte(s) sent, 15018 stored — identical'. (2) comment → POST /repos/objectstack-ai/objectui/issues/12521/comments (this report). No label writes. git push x3 of claude/issue-12521-form-dialog-layout (277feffff6 merge, b70351266a, 91fd2dbe68) is not REST.",
      "open_questions": [],
      "out_of_scope_findings": [
        "carrier: none (承接者:无) · noted, not filed (zero pull): the console's global record dialog never reads FormView.modalSize or FormView.columns. AppContent spreads resolveFormViewLayout, which returns only sections, contentLayout and subforms. The spec docblock's 'FormView.type / modalSize ... win' therefore has no path at this host. No producer writes FormView.modalSize: git grep finds 0 hits in hotcrm HEAD, objectstack origin/main examples/, and objectui examples/ and apps/. Recorded in the PR's Acceptance notes.",
        "carrier: the seat (the interim-deletion follow-up card) · noted, not filed: this round is dialog-only, like round 1. Once objectstack-ai/objectstack#23740 drops default(1), the page ObjectForm, SplitForm, TabbedForm and WizardForm will meet undeclared sections and draw them at the widest declared count, or single-column when none declares; the dialog draws two per row. Whether the fork's 'renderer's choice by available width' should reach those hosts is the seat's call for that card. Dedupe words: 'undeclared section columns page form', 'sectionedGridLayout undeclared density', 'FormSectionSchema columns default(1) renderer'.",
        "carrier: whoever lands the spec bump carrying objectstack-ai/objectstack#23734 · noted, not filed: besides this PR's exit pin, packages/plugin-view/src/recordSurface.test.ts ('task flows never route: heavy → full-screen modal overlay') also pins size 'full' for every heavy task flow and will go red on the same bump; update it with the interim's deletion. While the interim stands, it also bounds a field-heavy form with an embedded child table, the case letter B item 2 may keep full-screen."
      ]
    }

    ---

    Generated by Claude Code
15. objectstack-fleet

    closed this as completedin #12546on Oct 16, 2026
16. objectstack-fleet commented on Oct 16, 2026



    objectstack-fleetbot

    on Oct 16, 2026

    ContributorAuthor

    More actions

    Landed · domain:ui seat 1 · session_01JZnppgHRp4sREcouhkQYDB · 2026-10-16T01:35Z

    • Merged: PR fix(plugin-form): a record dialog with no authored layout opens bounded with a two-column grid (objectui#12521) #12546 landed through the merge queue as main 7b5e55893b at 2026-10-16T01:33Z. It has one parent, ae923ece22, and is an ancestor of origin/main.
    • Verified by content:
      • All 9 files the PR changes are blob-identical on 7b5e55893b to the accepted head 91fd2dbe68.
      • The squash touches no other file (9 files, +749/−55).
      • Its patch-id equals the accepted diff's (7571037de96a).
    • Mis-close scan: the PR body's only closing keyword is Fixes #12521. The only issue closed with this merge is this card, as completed.
    • What now holds:
      • On desktop, a field-heavy object's create and edit dialog opens bounded by ModalForm's lg / xl, not at 95vw. HotCRM Leads → New and Edit at 1440 measure 1024 × 810 (1368 × 810 before).
      • This is the console interim interimBoundedTaskFlowSurface in AppContent.tsx, ruled at 6205068311. Its exit pin turns red, naming the deletion, once the installed spec derives a bounded size itself.
      • The phone sheet at 390 is unchanged.
      • An authored section draws its own columns per row (HotCRM's lead form: 2 / 3 / 2 / 2 / 1 / 2).
      • In a form with no columns, an undeclared section draws two per row from @md. On authored stacks this stays dormant until spec(view): FormSectionSchema.columns drops default(1) — an undeclared section density is the renderer's (by available width), a declared one is the author's ceiling (objectui#12521 fork) objectstack#23740 drops the upstream default(1).
    • What remains, carried by cards:
      • objectui#12592 deletes the interim and aligns the page hosts' undeclared density. It is pm:blocked until objectui installs an @objectstack/spec carrying spec(record-surface): a field-heavy create/edit flow on desktop derives a bounded modal, not full-screen; mobile keeps full (objectui#12521 letter B) objectstack#23734 (closed) and #23740 (open).
      • objectui#12593 (finding): between sm and 1024 px, an xl dialog runs edge to edge.
    • The chain: letter B 6203721639, section-columns fork 6204264665, interim ruling 6205068311 on the maintainer's 「可以，12521 走快速方案」, rework claim 6205076950, ACCEPT 6205856787.

    ---

    Generated by Claude Code
17. objectstack-fleet

    removed

    pm:dispatched

    on Oct 16, 2026
