Update managing-projects-using-jira.md

Author: datanerd

content/admin/user-management/managing-projects-using-jira.md

@@ -14,32 +14,51 @@ versions:
 ### Connecting Jira to a {% data variables.product.prodname_enterprise %} organization

 1. Sign into your {% data variables.product.prodname_enterprise %} account at http[s]://[hostname]/login.
-1. Got to http[s]://[hostname]/settings/organizations or alternatively in the top-right corner of GitHub Enterprise Server, click your profile photo, then click **Your organizations**.
-https://user-images.githubusercontent.com/59625655/100982733-8b1c7380-359c-11eb-9ab7-62f18581a930.png
-1. Click on **Settings** button for the organisation you'd like to connect to Jira
-1. In the left sidebar, under **Developer settings** click **OAuth Apps**.
-1. Click on **Register new application** button.
-1. Fill in the application settings:

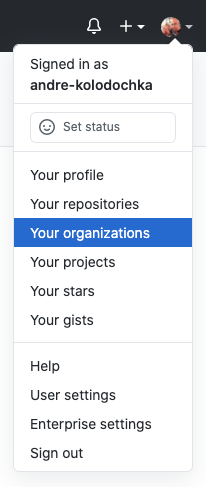

+2. Got to http[s]://[hostname]/settings/organizations or alternatively in the top-right corner of GitHub Enterprise Server, click your profile photo, then click **Your organizations**.
+
+![Drop-down with Your Organizations link](https://user-images.githubusercontent.com/59625655/100982733-8b1c7380-359c-11eb-9ab7-62f18581a930.png)
+
+3. Click on **Settings** button for the organisation you'd like to connect to Jira
+
+![image](https://user-images.githubusercontent.com/59625655/101001072-c5910b00-35b2-11eb-9541-7969d7d67803.png)
+
+4. In the left sidebar, under **Developer settings** click **OAuth Apps**.
+
+![image](https://user-images.githubusercontent.com/59625655/101001717-99c25500-35b3-11eb-8fe4-af4692fd5782.png)
+
+5. Click on **Register new application** button.
+
+![image](https://user-images.githubusercontent.com/59625655/101001790-ae9ee880-35b3-11eb-9a05-37343d4d8de4.png)
+
+6. Fill in the application settings:
     - In the **Application name** field, type "Jira".
     - In the **Homepage URL** field, type the full URL of your Jira instance.
     - In the **Authorization callback URL** field, type the full URL of your Jira instance.
-1. Click **Register application**.
-1. At the top of the page, note the **Client ID** and **Client Secret**. You will need these for configuring your Jira instance.
+7. Click **Register application**.
+8. At the top of the page, note the **Client ID** and **Client Secret**. You will need these for configuring your Jira instance.

 ### Jira instance configuration

 1. On your Jira instance, log into an account with administrative access.
-1. At the top of the page, click the settings (gear) icon.
-1. In the settings dropdown, choose **Applications**.
-1. In the left sidebar, under **Integrations**, click **DVCS accounts**.
-1. Click **Link Bitbucket or GitHub account**.
-1. In the **Add New Account** modal, fill in your {% data variables.product.prodname_enterprise %} settings:
+2. At the top of the page, click the settings (gear) icon and choose **Applications**.
+
+![image](https://user-images.githubusercontent.com/59625655/101001331-16a0ff00-35b3-11eb-909a-6a58ab6b6288.png)
+
+3. In the left sidebar, under **Integrations**, click **DVCS accounts**.
+
+![image](https://user-images.githubusercontent.com/59625655/101001515-549e2300-35b3-11eb-804c-11f9a50f591e.png)
+
+4. Click **Link Bitbucket or GitHub account**.
+
+![image](https://user-images.githubusercontent.com/59625655/101001584-6aabe380-35b3-11eb-936a-67a1aa8f3504.png)
+
+5. In the **Add New Account** modal, fill in your {% data variables.product.prodname_enterprise %} settings:
     - From the **Host** dropdown menu, choose **GitHub Enterprise**.
     - In the **Team or User Account** field, type the name of your {% data variables.product.prodname_enterprise %} organization or personal account.
     - In the **OAuth Key** field, type the Client ID of your {% data variables.product.prodname_enterprise %} developer application.
     - In the **OAuth Secret** field, type the Client Secret for your {% data variables.product.prodname_enterprise %} developer application.
     - If you don't want to link new repositories owned by your {% data variables.product.prodname_enterprise %} organization or personal account, unselect **Auto Link New Repositories**.
     - If you don't want to enable smart commits, unselect **Enable Smart Commits**.
     - Click **Add**.
-1. Review the permissions you are granting to your {% data variables.product.prodname_enterprise %} account and click **Authorize application**.
-1. If necessary, type your password to continue.
+6. Review the permissions you are granting to your {% data variables.product.prodname_enterprise %} account and click **Authorize application**.
+7. If necessary, type your password to continue.
